MIST EXTINGUISHERS New Automatic Fire Suppression Ceiling Mounted

Modular Fire Extinguisher

Dispatch 2–3 days

AMTEX ceiling mounted modular extinguisher with automatic heat detection and discharge. Ideal for server rooms, storage areas and high chemical stacks. Available in ABC Powder & Clean Agent variants (5kg & 10kg).

Key Point
Automatic temperature-based discharge
Key Point
Ceiling mounted for wider coverage
Key Point
Available in 5kg & 10kg variants
Contact for price
Genuine warranty
Pan-India shipping
Audit assistance
Upgrade options
Product Overview-Product Features

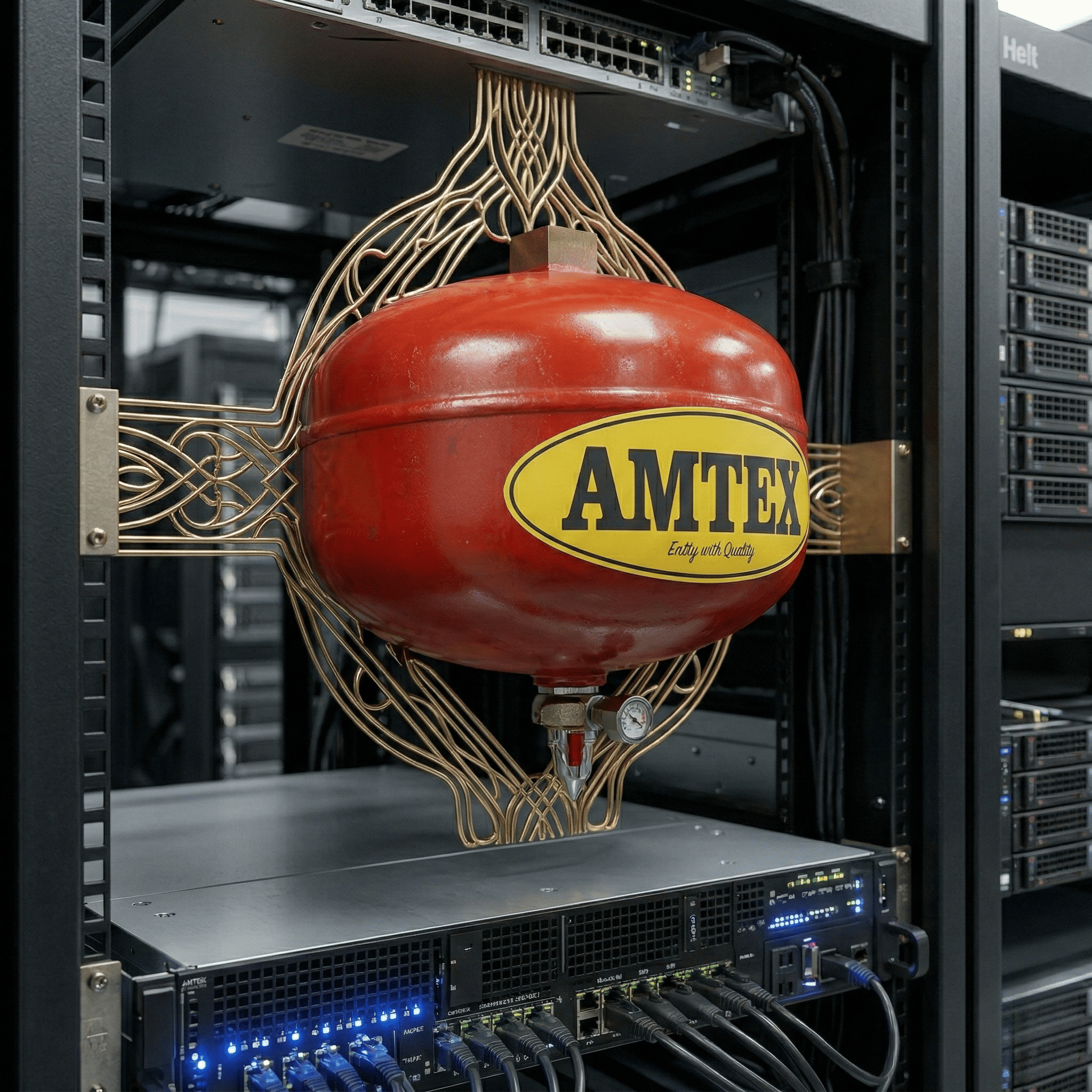

Modular Fire Extinguisher

Automatic Ceiling Mounted Fire Protection for Remote & High-Risk Areas

There will always be areas in a workplace where chances of detecting a fire early are very few and human traffic is very low — factories with large storage areas and server rooms, for instance. If a fire breaks out in such areas, putting it out becomes almost impossible.

AMTEX Brand Ceiling Mounted extinguishers, with their automatic detection and activation feature prevent such an occurrence. Because they are ceiling mounted, they are also useful in areas that are beyond the range of normal fire extinguishers, such as high chemical stacks.

AMTEX presents the modular type Automatic fire extinguisher. It keeps guard and extinguishes fire quickly and efficiently when the fire temperature reaches the temperature sensing bulb temperature. These modules are very useful especially in closed and remote places where fire could cause extensive damage if not detected and extinguished in time.

In the event of a fire, AMTEX brand Ceiling Mounted extinguishers activate automatically, spraying the extinguishant with maximum force, ensuring that the fire is brought under control rapidly and efficiently.

The ABC powder variant uses 90% concentration of Mono Ammonium Phosphate to maximize fire fighting power against virtually all classes of fire. The Clean agent based variant uses HFC236fa / HCFC123 gas that leaves no collateral damage.

  • Fights Class A, B, C and electrically started fires
  • Automatic Discharge Mechanism
  • Pressure gauge ensures readiness
  • Available in 5kg & 10kg (ABC Powder & Clean Agent)

Note: It is mandatory for the extinguisher to be refilled by manufacturer or authorised skilled agent. Technical specifications are subject to change due to continuous improvement.

Key Highlights
  • Multi-Class Fire Protection
    Fights Class A, B, C and electrically started fires
  • Automatic Activation
    Discharges automatically when temperature reaches bulb threshold
  • Maximum Discharge Force
    Sprays extinguishant with maximum force for rapid control
  • Clean Agent Option
    HFC236fa / HCFC123 leaves no residue and no collateral damage
  • Certified Quality
    ISO 9001, CE certified and conforms to applicable standards

Works on

Suitable across multiple fire classes (as per application).
Class-A
Solid combustibles
Class-B
Flammable liquids
Class-C
Flammable gases
Electrical
Electrically started fires
*Use from a safe distance and follow safety guidance / site policy.

Technical & Performance Data

Reference configuration data (subject to continuous improvements).
Parameter M.F.(CT.)/9
Capacity 9 LTRS.
Extinguishing Agent MECHANICAL FOAM
Propellant CO2 GAS CARTRIDGE (As per IS:4947)
Applicable On Fires A & B
Operating Temperature +5 "C to +60 "C
Fire Rating MIN 4A & 144B
Hydrostatic Test Pressure 35 BAR
Burst Pressure MIN 55 BAR
Working Pressure 15 BAR
Coating EPOXY POWDER COATING
Mounting Bracket YES
Pressure Gauge YES
Hose Assemblies YES
Safety Locking Device YES (20 N TO 100 N)
Conforming Standards IS:15683 (LATEST)
Approvals BIS,CE,EN & ISO
Refilling Schedule AS PER IS:2190
Important
It is mandatory for the extinguisher to be refilled by Manufacturer or an Authorised Skilled Agent. Specifications may change with time due to continuous product improvisation.
