ISI / ISO / CE (As Applicable)

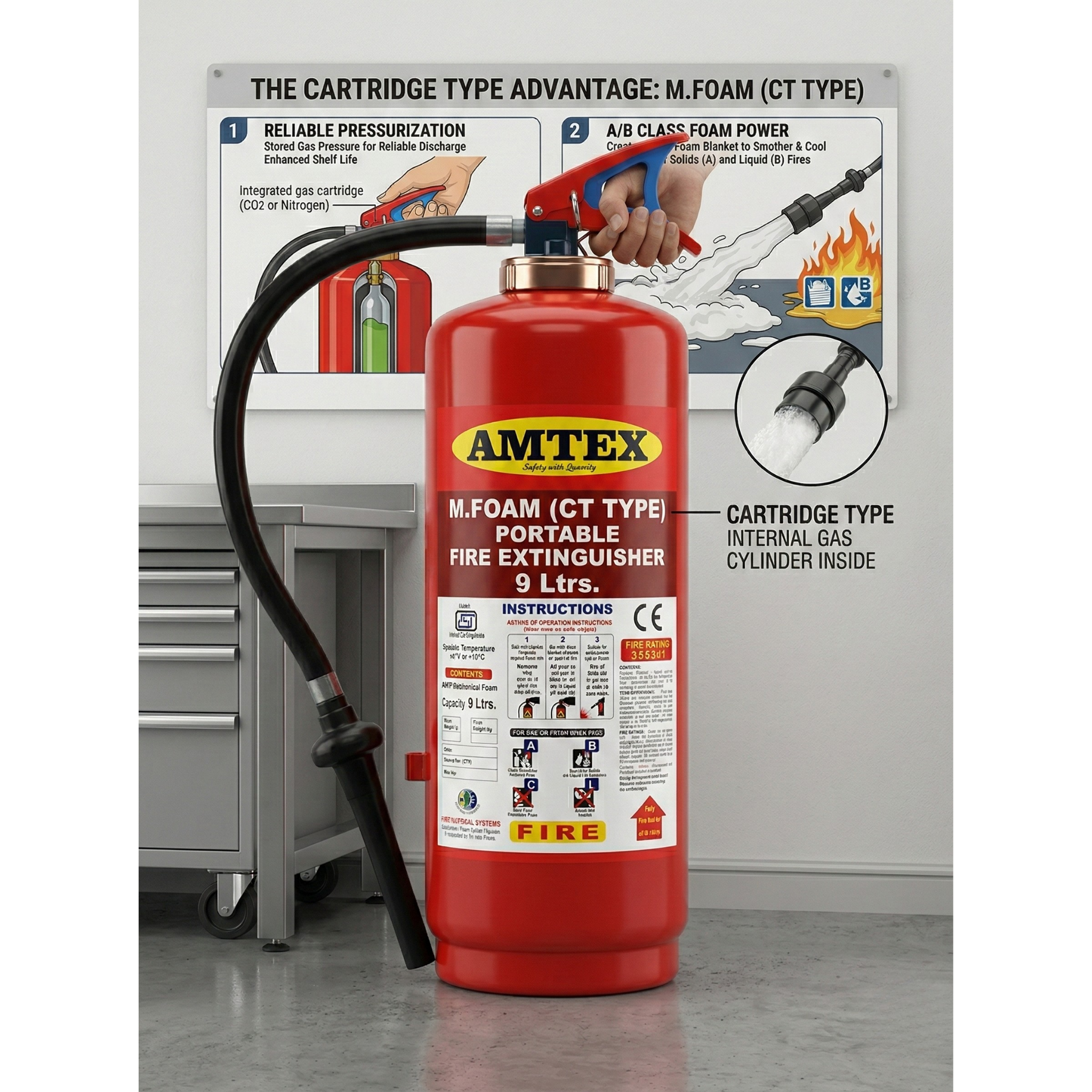

Portable M.Foam Based (CT Type) Fire Extinguisher
Safe and reliable cartridge-operated AFFF mechanical foam fire extinguisher. Spot pressure activation generates pressure only during firefighting. Suitable for Class A & B fires with rapid knockdown performance.
Portable M.Foam Based (CT Type) Fire Extinguisher
Portable AFFF Mechanical Foam (CT Type) Fire Extinguisher
Safe, Reliable Extinguisher: Conventional cartridge extinguishers create the required pressure on the spot during firefighting, making it one of the safest and most reliable extinguishers.
Easy-to-use with Quick Activation: As a spot pressure extinguisher, the cartridge can be instantly activated by firmly pressing the trigger.
Safe Technology: Since these extinguishers create pressure only when required, they ensure absolute safety at all times.
AFFF Mechanical Foam type fire extinguishers are characterized by high performance, simple operation and rapid fire knockdown capability. AMTEX Foam extinguishers contain high performance foam to achieve the best fire rating.
- Suitable for Class A & B fires (wood, paper, cloth; flammable liquids like petrol, paints, solvents etc.)
- BIS Approved, ISI & CE marked
- Hydraulically tested and anti-corrosive treated
- Brass chrome plated valve with simple operation
- Large loop anti-corrosive pull pin
- Rubber braided hose (flexible and crack-resistant)
- Conformity standard: IS:15683:2018 (Latest)
Ideal Use: Homes, offices, buildings, warehouses, farms and wood working areas etc.
Refilling must be done by Manufacturer or Authorised Skilled Agent. Technical specifications are subject to change due to continuous improvement.
-
Safe Spot-Pressure System
Pressure is created only when required during firefighting
-
Quick Activation
Cartridge can be instantly activated by pressing the trigger
-
High Performance AFFF Foam
Rapid fire knockdown with strong fire rating performance
-
Certified & Tested
BIS approved, ISI & CE marked; hydraulically tested & anti-corrosive treated
-
Easy Maintenance
Easy to maintain, recharge & service
Works on
Recommended For
- Homes
- Offices
- Buildings & Warehouses
- Farms
- Wood Working Areas
- Generator Rooms
- Oil & Petrochemical Factories
- Restaurants
- Parking Garages
- Airports
- Repair Workshops
- Petrol & Oil Pumps
Technical & Performance Data
| Parameter | M.F.(CT.)/9 |
|---|---|
| CAPACITY | 9LTRS. |
| EXTINGUISHING AGENT | MECHANICAL FOAM |
| PROPELLANT | CO2 GAS CARTRIDGE (As per IS:4947) |
| APPLICABLE ON FIRES | A & B |
| OPERATING TEMPERATURE | +5 C to +60 C |
| FIRE RATING | MIN 4A & 144B |
| HYDROSTATIC TEST PRESSURE | 35 BAR |
| BURST PRESSURE | MIN 55 BAR |
| WORKING PRESSURE | 15 BAR |
| IMPACT TEST | PASSED |
| PRESSURE CYCLING TEST | PASSED |
| TAPPING TEST | PASSED |
| INTERMITTENT DISCHARGE TEST | PASSED |
| COATING | EPOXY POWDER COATING |
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING |
| DISCHARGE MECHANISM | SQUEEZE GRIP/PALM TRIGGERED |
| METHOD OF OPERATION | EASY ACTIVATION |
| BODY THICKNESS | AS PER IS:15683 |
| HELIUM LEAK DETECTION TESTING | YES |
| LEAKAGE TEST | YES |
| HEIGHT (APPROX.) | Approx. 550 mm. |
| GROSS WEIGHT (APPROX.) | Min.14.100 Kg |
| AVERAGE DISCHARGE TIME(MED) | MIN 13 SEC |
| AVERAGE RANGE OF THROW | 2-6 MTR. |
| AVERAGE % DISCHARGE | MIN 90% |
| MOUNTING BRACKET | YES |
| PRESSURE GAUGE | YES |
| HOSE ASSEMBLIES | YES |
| SAFETY LOCKING DEVICE | YES(20 N TO 100 N) |
| CONFORMING STANDARDS | IS:15683(LATEST) |
| PROVAL (BIS APPROVED LAB) | YES |
| APPROVALS | BIS,CE,EN & ISO |
| REFILLING SCHEDULE | AS PER IS:2190 |
