ISI / ISO / CE (As Applicable)

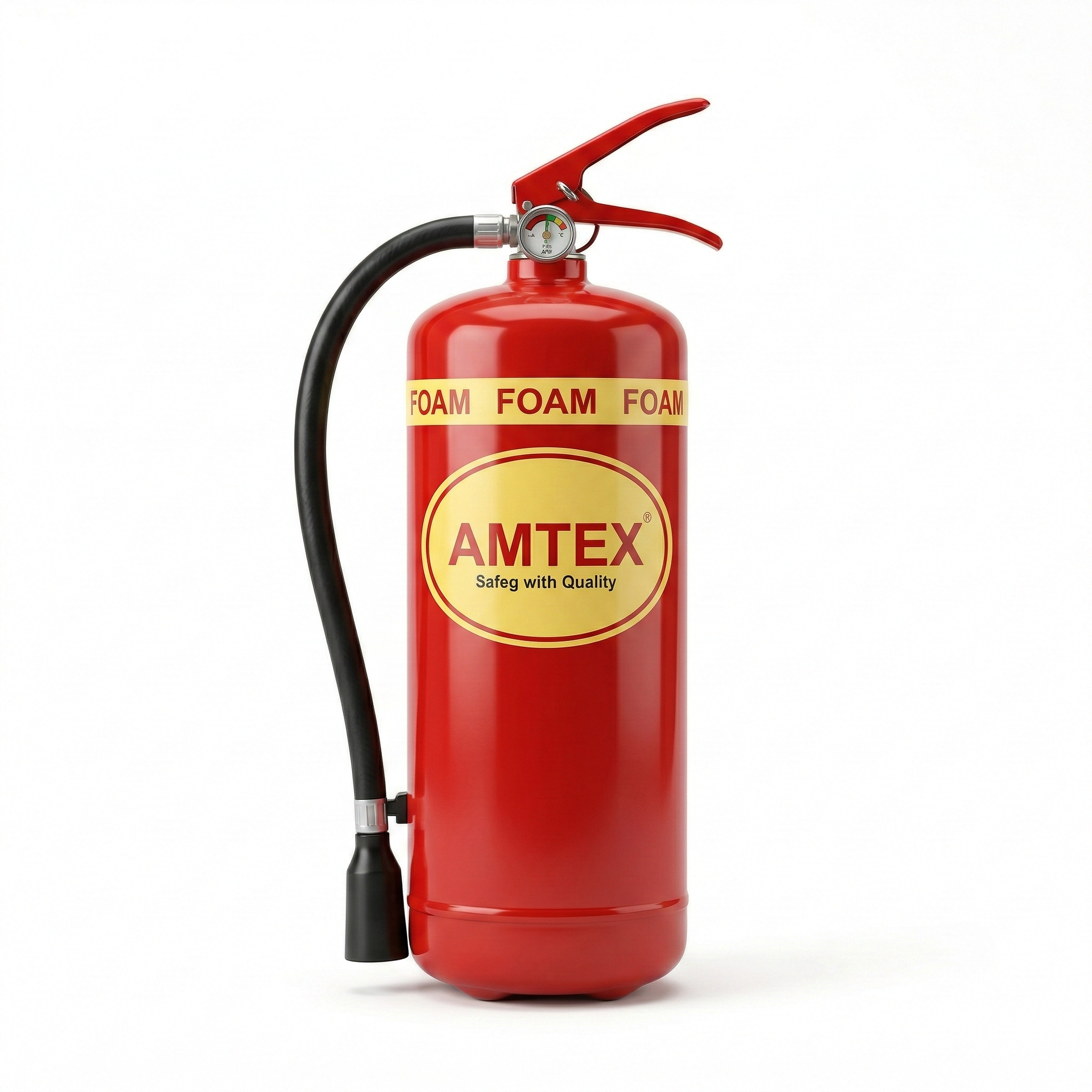

Portable M.Foam Based (SP Type) Fire Extinguisher
AMTEX Stored Pressure (SP) AFFF mechanical foam extinguisher for Class A & B fires. Squeeze-grip mechanism, long flexible hose and high power throw for fast, effective suppression.
Portable M.Foam Based (SP Type) Fire Extinguisher
Portable AFFF Mechanical Foam (Stored Pressure Type)
AMTEX brand Foam fire extinguishers are suitable for Class A and the flammable liquids of Class B (not effective for gaseous and electrical fires).
The AFFF Foam Extinguisher works on the principle of cutting off the oxygen supply required to sustain a fire. The foam smothers flames and forms a compact blanket over the fire, preventing spreading or re-ignition. It can be used successfully against Class A and B fires.
AMTEX Foam extinguishers use a squeeze grip mechanism, making them faster and easier to use. Proprietary stored pressure technology delivers a high power throw, making these extinguishers extremely effective.
- Simplicity in handling: Flexible and long hosepipe for easy handling
- Discharge mechanism: Easy squeeze grip activation to control discharge and optimise agent usage
- Pressure gauge: Ensures readiness of working condition
- Suitable for A & B fires (wood, paper, cloth; flammable liquids like petrol, paints, solvents etc.)
- AFFF Mechanical Foam offers high performance and rapid knockdown
- IS:15683(2018) with latest amendments
- BIS Approved and ISI & CE marked
- Hydraulically tested and anti-corrosive treated
- Brass chrome plated valve with simple squeeze operation
- Unique Gauge Testing System (UGTS), controllable discharge
- Easy to maintain, recharge & service
- Large loop anti-corrosive pull pin
- Rubber braided hose (flexible, crack-resistant)
- Conformity standard: IS:15683:2018 (Latest)
- Portable fire extinguishers also BS EN standard based
Ideal Use: Homes, offices, buildings, warehouses, farms, wood working areas etc.
Refilling must be done by Manufacturer or Authorised Skilled Agent. Technical specifications may change due to continuous improvement.
-
High Power Throw
Stored pressure technology delivers strong throw and rapid knockdown
-
Squeeze-Grip Control
Easy activation with controllable discharge to optimise extinguishing agent
-
Long Flexible Hose
Flexible long hosepipe for simplicity in handling and better reach
-
Pressure Gauge + UGTS
Gauge ensures readiness; UGTS supports reliable working condition checks
-
Certified & Tested
BIS approved, ISI & CE marked; hydraulically tested & anti-corrosive treated
Works on
Recommended For
- Schools
- Offices & Banks
- Hotels
- Restaurants
- Parking Garages
- Electrical Equipment Rooms (Class A/B risks)
- Repair Workshops
- Construction Sites
- Materials Handling Vehicles
- Maintenance Facilities
- Petrol & Oil Pumps
- Paint Processing Areas
Technical & Performance Data
| Parameter | M.F(S.P.)9 |
|---|---|
| CAPACITY | 9LTRS |
| EXTINGUISHING AGENT | MECHANICAL FOAM |
| PROPELLANT | NITROGEN GAS (As per IS:1747) |
| APPLICABLE ON FIRES | A & B |
| OPERATING TEMPERATURE | +5 C to +60 C |
| FIRE RATING | MIN 4A& 144B |
| HYDROSTATIC TEST PRESSURE | 35 BAR |
| BURST PRESSURE | MIN 55 BAR |
| WORKING PRESSURE | 15 BAR |
| IMPACT TEST | PASSED |
| PRESSURE CYCLING TEST | PASSED |
| TAPPING TEST | PASSED |
| INTERMITTENT DISCHARGE TEST | PASSED |
| COATING | EPOXY POWDER COATING |
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING |
| CAN CONSTRUCTION | DEEP DRAWN AND MIG WELDED |
| DISCHARGE MECHANISM | SQUEEZE GRIP/THUMB TRIGGERED |
| METHOD OF OPERATION | EASY ACTIVATION |
| BODY THICKNESS | AS PER IS:15683 |
| HELIUM LEAK DETECTION TESTING | YES |
| LEAKAGE TEST | YES |
| HEIGHT (APPROX.) | Approx.550mm |
| GROSS WEIGHT (APPROX.) | Min.12.200Kg |
| AVERAGE DISCHARGE TIME(MED) | MIN 13 SEC |
| AVERAGE RANGE OF THROW | 3-6 MTR |
| AVERAGE % DISCHARGE | MIN 90% |
| MOUNTING BRACKET | YES |
| PRESSURE GAUGE | YES |
| READYNESS OF WORKING | SHOWING |
| HOSE ASSEMBLIES | YES (MORE THAN 400 MM) |
| SAFETY LOCKING DEVICE | YES(20 N TO 100 N) |
| CONFORMING STANDARDS | IS:15683(LATEST) |
| LAB APPROVAL (BIS APPROVED LAB) | YES |
| APPROVALS | BIS,CE,EN & ISO |
| REFILLING SCHEDULE | AS PER IS:2190 |
