ISI / ISO / CE (As Applicable)

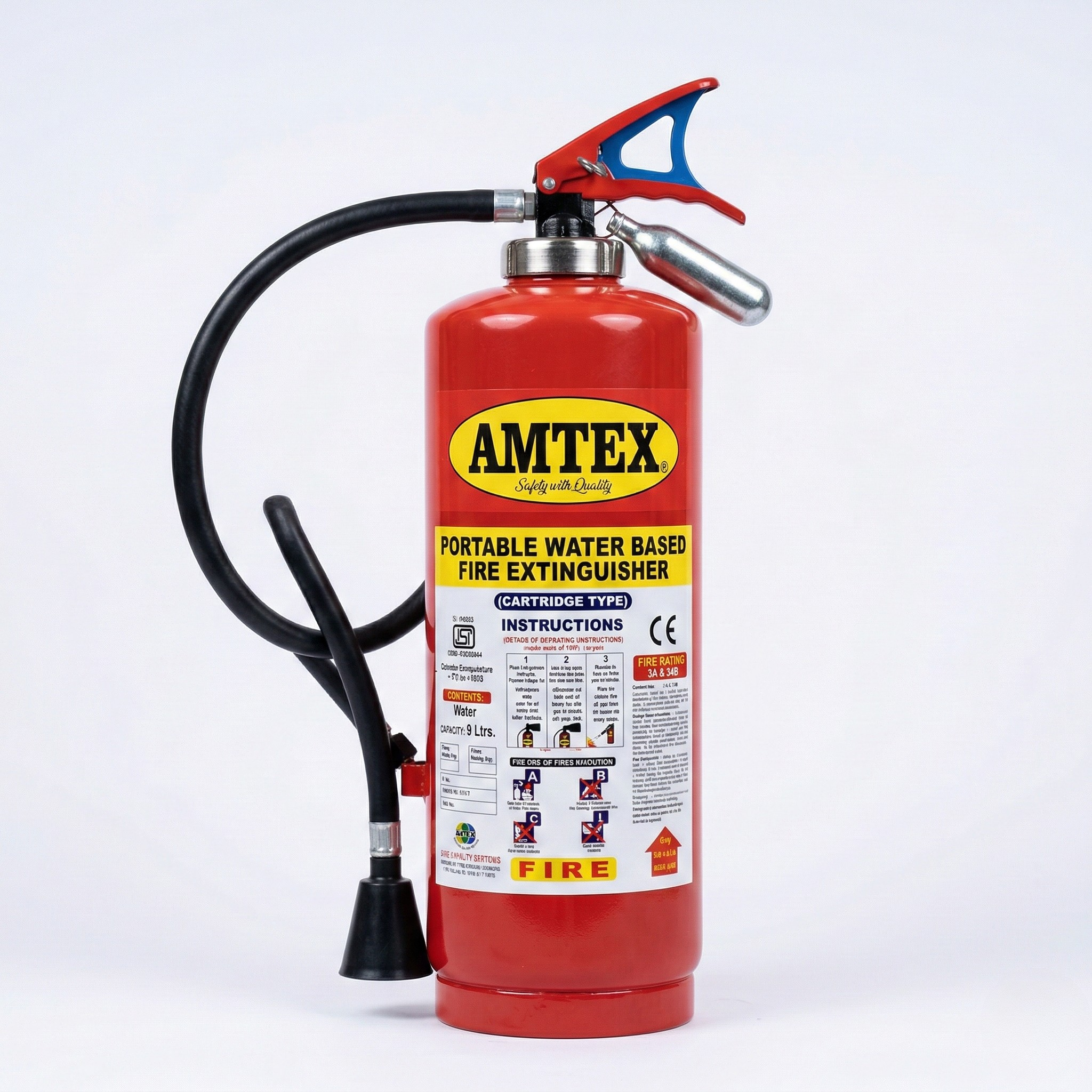

Portable Water Based (CT Type) Fire Extinguisher
AMTEX Cartridge Type Water Fire Extinguisher delivers high power water throw for effective Class A fire suppression. Ideal for wood, paper and solid combustible fires.
Portable Water Based (CT Type) Fire Extinguisher
Portable Water Based (CT Type) Fire Extinguisher
AMTEX brand Water extinguishers use cartridge technology, delivering high power throw of water. This allows firefighters to maintain a safe distance from flames while achieving rapid knockdown.
Water is the most effective extinguishing agent against fires in solid combustibles such as wood, paper and cloth. These fires can remain hidden deep within materials and continue to rise in temperature until surrounding materials ignite. Water instantly reduces temperature and prevents re-ignition.
- Suitable for Class A fires (wood, paper, cloth)
- Cartridge technology creates pressure only during firefighting
- High performance and rapid fire knockdown
- IS:15683:2018 (Latest Amendments)
- BIS Approved, ISI & CE Marked
- Hydraulically tested & anti-corrosive treated
- Brass chrome plated valve with simple operation
- Unique Gauge Testing System (UGTS)
- Rubber braided hose (flexible & crack resistant)
Ideal Use: Homes, offices, buildings, warehouses, farms and wood working areas.
Refilling must be done by Manufacturer or Authorised Skilled Agent. Technical specifications subject to change.
-
Power of Water
Instantly reduces fire temperature and prevents re-ignition
-
Cartridge Activation
Pressure created only during firefighting for maximum safety
-
Certified Quality
BIS approved, ISI & CE marked; tested as per IS standards
-
Durable Construction
Hydraulically tested, anti-corrosive treated body
Works on
Recommended For
- Schools
- Offices & Banks
- Hotels
- Restaurants
- Parking Garages
- Repair Workshops
- Construction Sites
- Grocery Shops
- Storage Areas
- Godowns
Technical & Performance Data
| Parameter | WATER(CT.) 9 |
|---|---|
| CAPACITY | 9LTRS. |
| EXTINGUISHING AGENT | WATER |
| PROPELLANT | CO2 GAS CARTRIDGE (As per IS:4947) |
| APPLICABLE ON FIRES | A |
| OPERATING TEMPERATURE | +5 C to +60 C |
| FIRE RATING | MIN 3A |
| HYDROSTATIC TEST PRESSURE | 35 BAR |
| BURST PRESSURE | MIN 55 BAR |
| WORKING PRESSURE | 15 BAR |
| IMPACT TEST | PASSED |
| PRESSURE CYCLING TEST | PASSED |
| TAPPING TEST | PASSED |
| INTERMITTENT DISCHARGE TEST | PASSED |
| COATING | EPOXY POWDER COATING |
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING |
| DISCHARGE MECHANISM | SQUEEZE GRIP/PALM TRIGGERED |
| METHOD OF OPERATION | EASY ACTIVATION |
| BODY THICKNESS | AS PER IS:15683 |
| HELIUM LEAK DETECTION TESTING | YES |
| LEAKAGE TEST | YES |
| HEIGHT (APPROX.) | Approx.550mm |
| GROSS WEIGHT (APPROX.) | Min.14.100 Kg |
| AVERAGE DISCHARGE TIME(MED) | MIN 13 SEC |
| AVERAGE RANGE OF THROW | 2-6 MTR |
| AVERAGE % DISCHARGE | MIN 90% |
| MOUNTING BRACKET | YES |
| PRESSURE GAUGE | YES |
| HOSE ASSEMBLIES | YES (MORE THAN 400 MM) |
| SAFETY LOCKING DEVICE | YES(20 N TO 100 N) |
| CONFORMING STANDARDS | IS:15683(LATEST) |
| NABL LAB APPROVAL (BIS APPROVED LAB) | YES |
| APPROVALS | BIS,CE,EN & ISO |
| REFILLING SCHEDULE | AS PER IS:2190 |
