ISI / ISO / CE (As Applicable)

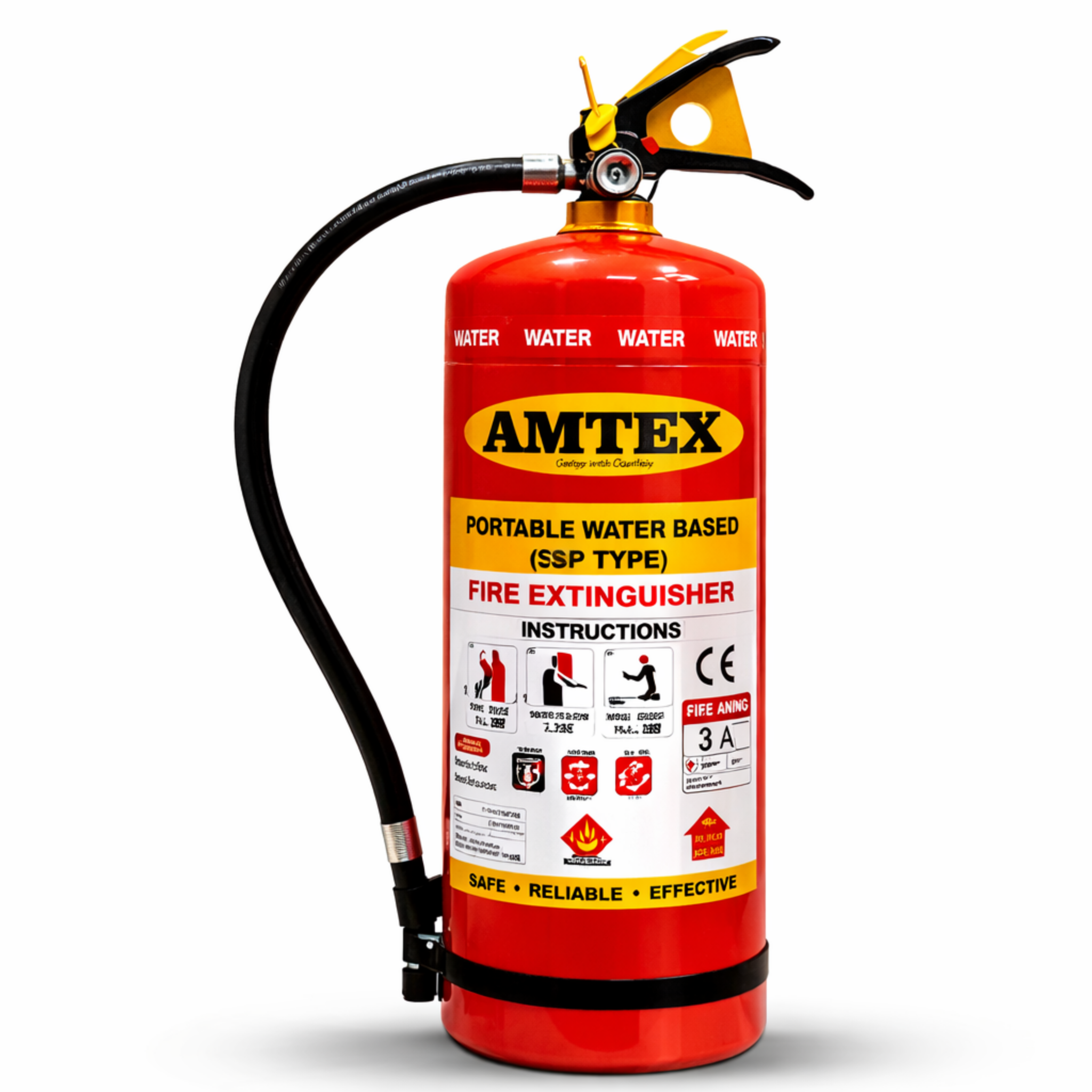

Portable Water Based (SP Type) Fire Extinguisher
AMTEX Stored Pressure (SP) water extinguisher delivers high power water throw for fast Class A fire knockdown. Pressure gauge & UGTS ensure readiness and controllable discharge.
Portable Water Based (SP Type) Fire Extinguisher
Portable Water Based (Stored Pressure Type) Fire Extinguisher
AMTEX brand Water extinguishers use stored pressure technology, delivering high power throw of water. This makes them more effective on the fire and allows the fire fighter to stay a safe distance from the flames.
Water is the most effective extinguishing agent against fires in solid combustibles such as wood, paper and cloth. These fires can remain hidden deep within objects and continue to rise in temperature until surrounding materials ignite. Water instantly brings down the temperature of the fire and the area around it, helping prevent re-ignition.
Pressure gauge: Ensures readiness of working condition.
- Suitable for Class A fires involving wood, paper, cloth etc.
- High performance and rapid fire knockdown capability
- IS:15683(2018) with latest amendments
- BIS Approved and ISI & CE marked
- Hydraulically tested & anti-corrosive treated
- High quality Pure Polyester (PP) powder coating (UV Resistant)
- Brass chrome plated valve with simple squeeze operation
- Unique Gauge Testing System (UGTS) mechanism, controllable discharge
- Easy to maintain, recharge & service
- Rubber braided hose (flexible, crack-resistant)
Ideal Use: Homes, offices, buildings, warehouses, farms, wood working areas etc.
Refilling must be done by Manufacturer or Authorised Skilled Agent. Technical specifications subject to change due to continuous improvement.
-
High Power Throw
Stored pressure technology delivers strong throw and rapid knockdown
-
Gauge + UGTS Readiness
Pressure gauge and UGTS support working-condition readiness checks
-
Squeeze Operation
Brass chrome plated valve with simple squeeze activation
-
Certified & Tested
BIS approved, ISI & CE marked; hydraulically tested and anti-corrosive treated
-
UV Resistant Coating
High quality Pure Polyester (PP) powder coating for durability
Works on
Recommended For
- Schools
- Offices & Banks
- Hotels
- Restaurants
- Parking Garages
- Repair Workshops
- Construction Sites
- Grocery Shops
- Storage Areas
- Godowns
Technical & Performance Data
| Parameter | WATER(S.P.)9 |
|---|---|
| CAPACITY | 9LTRS. |
| EXTINGUISHING AGENT | WATER |
| PROPELLANT | NITROGEN GAS (As per IS:1747) |
| APPLICABLE ON FIRES | A |
| OPERATING TEMPERATURE | +5 C to +60 C |
| FIRE RATING | MIN 3A |
| HYDROSTATIC TEST PRESSURE | 35 BAR |
| BURST PRESSURE | MIN 55 BAR |
| WORKING PRESSURE | 15 BAR |
| IMPACT TEST | PASSED |
| PRESSURE CYCLING TEST | PASSED |
| TAPPING TEST | PASSED |
| INTERMITTENT DISCHARGE TEST | PASSED |
| COATING | EPOXY POWDER COATING |
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING |
| CAN CONSTRUCTION | DEEP DRAWN AND MIG WELDED |
| DISCHARGE MECHANISM | SQUEEZE GRIP/THUMB TRIGGERED |
| METHOD OF OPERATION | EASY ACTIVATION |
| BODY THICKNESS | AS PER IS:15683 |
| HELIUM LEAK DETECTION TESTING | YES |
| LEAKAGE TEST | YES |
| HEIGHT (APPROX.) | Approx. 550 mm |
| GROSS WEIGHT (APPROX.) | Min.12.200 Kg |
| AVERAGE DISCHARGE TIME(MED) | MIN 13 SEC |
| AVERAGE RANGE OF THROW | 2-6 MTR. |
| AVERAGE % DISCHARGE | MIN 90% |
| MOUNTING BRACKET | YES |
| PRESSURE GAUGE | YES |
| READYNESS OF WORKING | SHOWING |
| HOSE ASSEMBLIES | YES (MORE THAN 400 MM) |
| SAFETY LOCKING DEVICE | YES(20 N TO 100 N) |
| CONFORMING STANDARDS | IS:15683(LATEST) |
| NABL LAB APPROVAL (BIS APPROVED LAB) | YES |
| APPROVALS | BIS,CE,EN & ISO |
| REFILLING SCHEDULE | AS PER IS:2190 |
